Nardi Breathing Air Compressor Pacific DY27 Diesel 225 bar
Nardi Breathing Air Compressor Pacific DY27 Diesel 225 bar
Nardi Breathing Air Compressor Pacific DY27 Diesel 225 bar
Nardi Breathing Air Compressor Pacific DY27 Diesel 225 bar
Nardi Breathing Air Compressor Pacific DY27 Diesel 225 bar

Nardi High Pressure
Breathing Air Compressor
Pacific DY27 Diesel
270 lpm - 225 bar

HPPP-D-270L
Price: $17,949.00
Available

NOTE: Pacific Model Compressors are 'Manufactured To Order'.
Delivery is generally 8 - 10 weeks from order.

The Nardi Pacific range of High Pressure Breathing Air Compressors are designed to fill SCUBA and SCBA Cylinders.

Manufactured in Italy and distributed in Australia by AC Diving, the Nardi Pacific range utilise Nardi's renowned compressor units, used throughout the world and with a well deserved reputation for quality, reliability and quiet operation.

The Pacific DY models are powerful, yet portable. Easy to transport due to their low weight and compact size, allowing refills when and where it suits you.

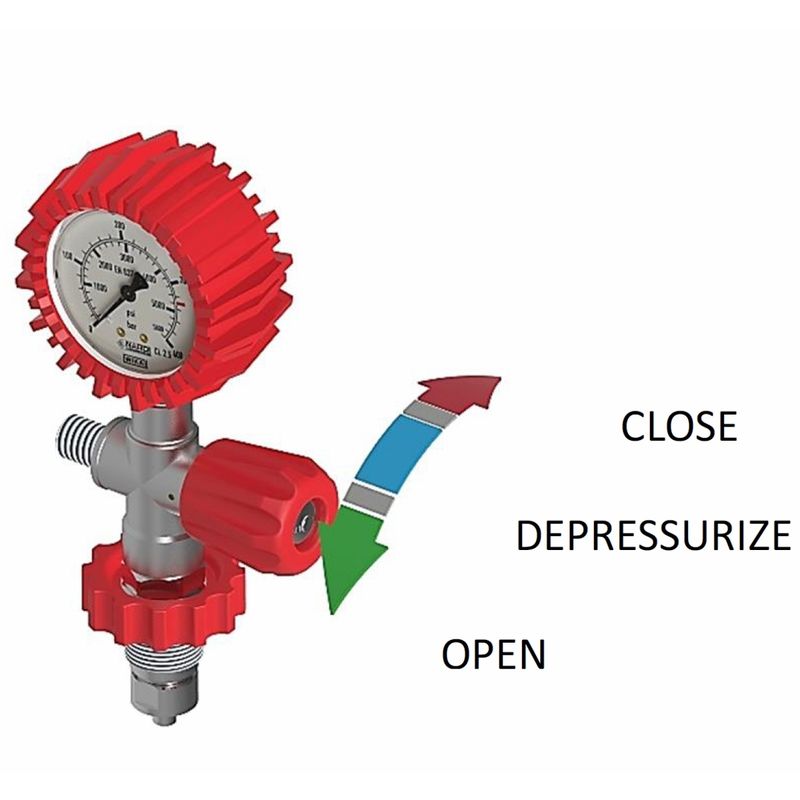

• 2 filling valves with Gauge and Depressurisation standard
• Stainless Steel and Powder Coated Aluminium frame
• Interstage Condensate Separator reduces condensation between stages
• Condensate Separator positioned to maintain low temperature
• Crankshaft perfectly balanced
• Roller Crankshaft Bearings
• High quality materials resistant to thermal and dynamic stresses
• Air conveyor designed for high heat exchange efficiency
• Steel valves for longer life and greater performance
• Filter cartridge properly sized for high air quality
• Low noise and vibration due to perfect balance of the pump unit
• Fully enclosed frame incorporating 'floating' base with anti-vibration mounts
• Oil Pump Lubrication
• Oil Filter and Magnet

Working Pressure: 200 Bar (2900psi)
Safety Valve Pressure: 225 Bar (3260psi)
Charging Rate (FAD): 270 lpm / 16.2m³ h / 9.5 cfm
Filling Time: 7 minutes 26 seconds (10 litres / 200 bar)
Air Filtration: PAC1 (To UNI EN 12021:2014 & AS/NZS1715:2009)
No Of Stages: 3
Power Source: Diesel
Engine: 10 HP / 7.4 Kw / 1550rpm
Noise: 89 dB
Max Operating Altitude: 2000m (6560 ft)
Enclosure Rating: IP54
Compressor Oil Capacity: 3.5 Litres
Compressor Oil Type: Mineral 150 Viscosity
Fill Hose: 2 x 1.0m Supplied (Connection For Two Additional Hoses)
Fill Connection: DIN (Yoke Connection Available)
Unit Dimensions: 1090mm(L) x 580mm(W) x 650mm(H)
Weight: 165.0 kg
Warranty: 12 Months

OPTIONS AVAILABLE
• Electronic Control System (Autostop, Electric Key Start and Automatic Condensate Drain)
• Additional 2 Filling Hoses (2 Standard / 4 Maximum)
• Handle Kit (Two Handles)
• Trolley Kit (Wheels & Handle)
• Condensate Collecting Tank “Eco Friendly”
• Oil Alert
• Filter Upgrade to PAC 2 or PAC 3 (PAC 1 Standard)
