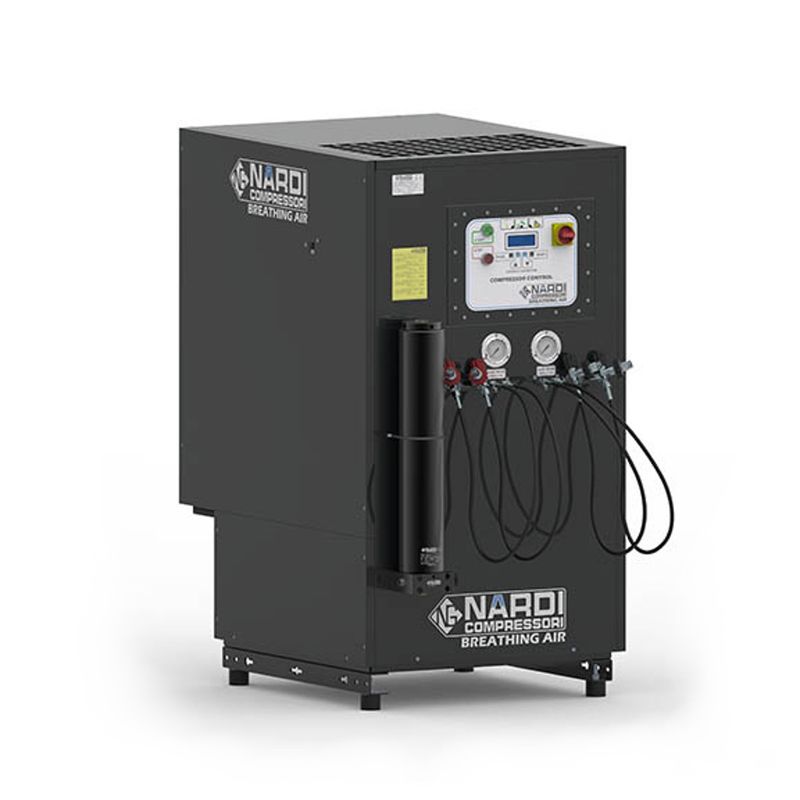

Nardi High Pressure
Breathing Air Compressor
Pacific M23 Silenced (415v)
230 lpm - 225 bar

HPPM-E415-230L
Price: $18,469.00
Available

NOTE: Pacific Model Compressors are 'Manufactured To Order'.
Delivery is generally 8 - 10 weeks from order.

The Nardi Pacific range of High Pressure Breathing Air Compressors are designed to fill SCUBA and SCBA Cylinders.

Manufactured in Italy and distributed in Australia by AC Diving, the Nardi Pacific range utilise Nardi's renowned compressor units, used throughout the world and with a well deserved reputation for quality, reliability and quiet operation.

The Pacific M models are powerful and designed to minimise noise.

• 2 filling valves with Gauges and Depressurisation standard
• Stainless Steel and Powder Coated Aluminium frame
• Interstage Condensate Separator reduces condensation between stages
• Condensate Separator positioned to maintain low temperature
• Crankshaft perfectly balanced
• Roller Crankshaft Bearings
• High quality materials resistant to thermal and dynamic stresses
• Air conveyor designed for high heat exchange efficiency
• Steel valves for longer life and greater performance
• Filter cartridge properly sized for high air quality
• Low noise and vibration due to perfect balance of the pump unit
• Fully enclosed sound insulated cabinet
• Electronic Control Panel manages pressure, temperature, oil level & filter status
• Automatic condensate drain
• Oil Pump Lubrication
• Oil Filter and Magnet

Working Pressure: 200 Bar (2900 psi)
Safety Valve Pressure: 225 Bar (3260 psi)
Charging Rate (FAD): 230 lpm / 13.8m³ h / 8.1 cfm
Filling Time: 8 minutes 46 seconds (10 litres / 200 bar)
Air Filtration: PAC1 (To UNI EN 12021:2014 & AS/NZS1715:2009)
No Of Stages: 3
Power Source: 415v 50hz Three Phase
Power Connection: Three Phase
Motor: 5.5 HP / 4 Kw / 1350 rpm
Noise: 66 dB
Max Operating Altitude: 2000m (6560 ft)
Enclosure Rating: IP54
Compressor Oil Capacity: 3.5 Litres
Compressor Oil Type: Mineral 150 Viscosity
Fill Hose: 2 x 1.0m Supplied (Connection For Two Additional Hoses)
Fill Connection: DIN (Yoke Connection Available)
Unit Dimensions: 750mm(L) x 1080mm(W) x 1340mm(H)
Weight: 264.0 kg
Warranty: 12 Months

OPTIONS AVAILABLE

• Additional 2 Filling Hoses (2 Standard / 4 Maximum)
• Soft Start
• Condensate Collecting Tank “Eco Friendly”
• Filter Upgrade to PAC 2 or PAC 3 (PAC 1 Standard)
