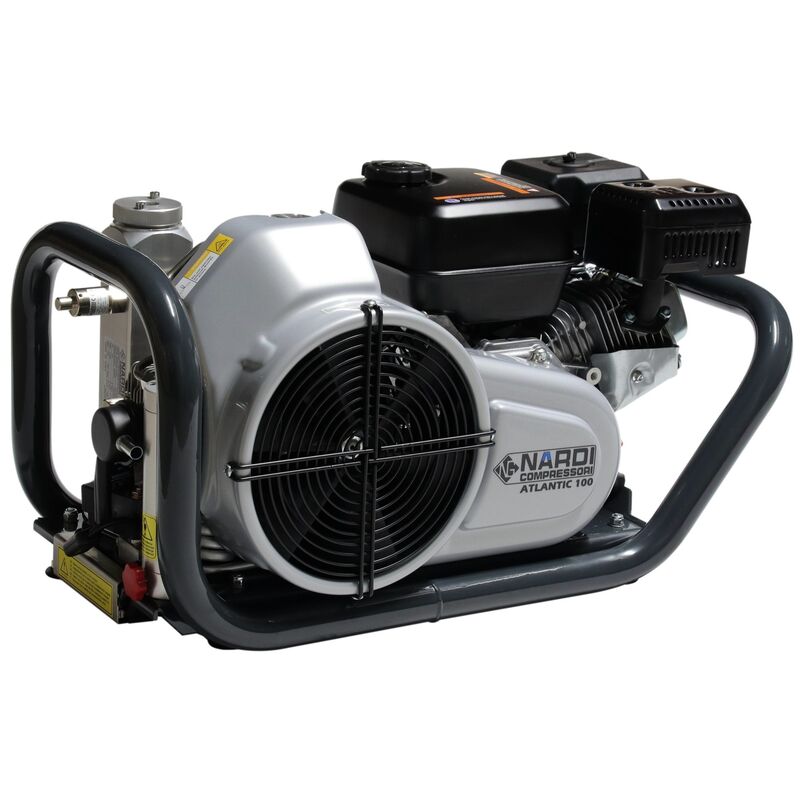

The Nardi Atlantic range of High Pressure Breathing Air Compressors are designed to fill SCUBA and SCBA Cylinders.
Manufactured in Italy and distributed in Australia by AC Diving, the Nardi Atlantic range utilise Nardi's renowned compressor units, used throughout the world and with a well deserved reputation for quality, reliability and quiet operation.
The Atlantic are the most compact of Nardi's High Pressure Breathing Air range, easy to transport due to their low weight and compact size, allowing refills when and where it suits you. Available in both Atlantic P Electric with single phase motor or Atlantic G Petrol with Subaru-Robin petrol engine.
• Filling valve with Gauge and Depressurisation standard
• Powder Coated Aluminium frame
• Interstage Condensate Separator reduces condensation between stages
• Condensate Separator positioned to maintain low temperature
• Crankshaft perfectly balanced
• High quality materials resistant to thermal and dynamic stresses
• Air conveyor designed for high heat exchange efficiency
• Steel valves for longer life and greater performance
• Filter cartridge properly sized for high air quality
• Low noise and vibration due to perfect balance of the pump unit
• Reliable petrol motors designed and built by Subaru/Robin
• Automatic Condensate Drain Included
• Automatic Motor Stop Included (Final Pressure Switch)
• Hour Meter Included
Working Pressure: 200 Bar (2900 psi)
Pressure Switch Setting: 220 Bar (3190 psi)
Safety Valve Pressure: 225 Bar (3260 psi)
Charging Rate (FAD): 100 lpm / 6m³h / 3.5 cfm
Filling Time: 20 minutes (10 litres / 200 bar)
Air Filtration: ATL (To UNI EN 12021:2014 & AS/NZS1715:2009)
No Of Stages: 4
Power Source: Petrol - Regular Unleaded (3.6 Litre Tank)
Engine: 5.7hp Subaru Robin EX17 / 2100 rpm
Noise: 84 dB
Max. Inclination Of Unit: 5°
Max Operating Altitude: 2000m (6560 ft)
Enclosure Rating: IP54
Compressor Oil Capacity: 0.35 Litres
Compressor Oil Type: Mineral 150 Viscosity
Fill Hose: 1 x 1.0m Supplied (Connection For Second Hose)
Fill Connection: DIN (Yoke Connection Available)
Unit Dimensions: 760mm X 370mm X 430mm
Packaged Dimensions: 790mm x 400mm x 470mm
Unit Weight: 43.8 kg
Packaged Weight: 45.8 kg
Warranty: 12 Months
ACCESSORIES AVAILABLE:
• DIN / YOKE Adaptor
• Additional Filling Hose
• Trolley Kit
